Infobit – iTrans E100TR HDMI 4K60 over HDBaseT 3.0 Extender (100m), Transceiver.

Description

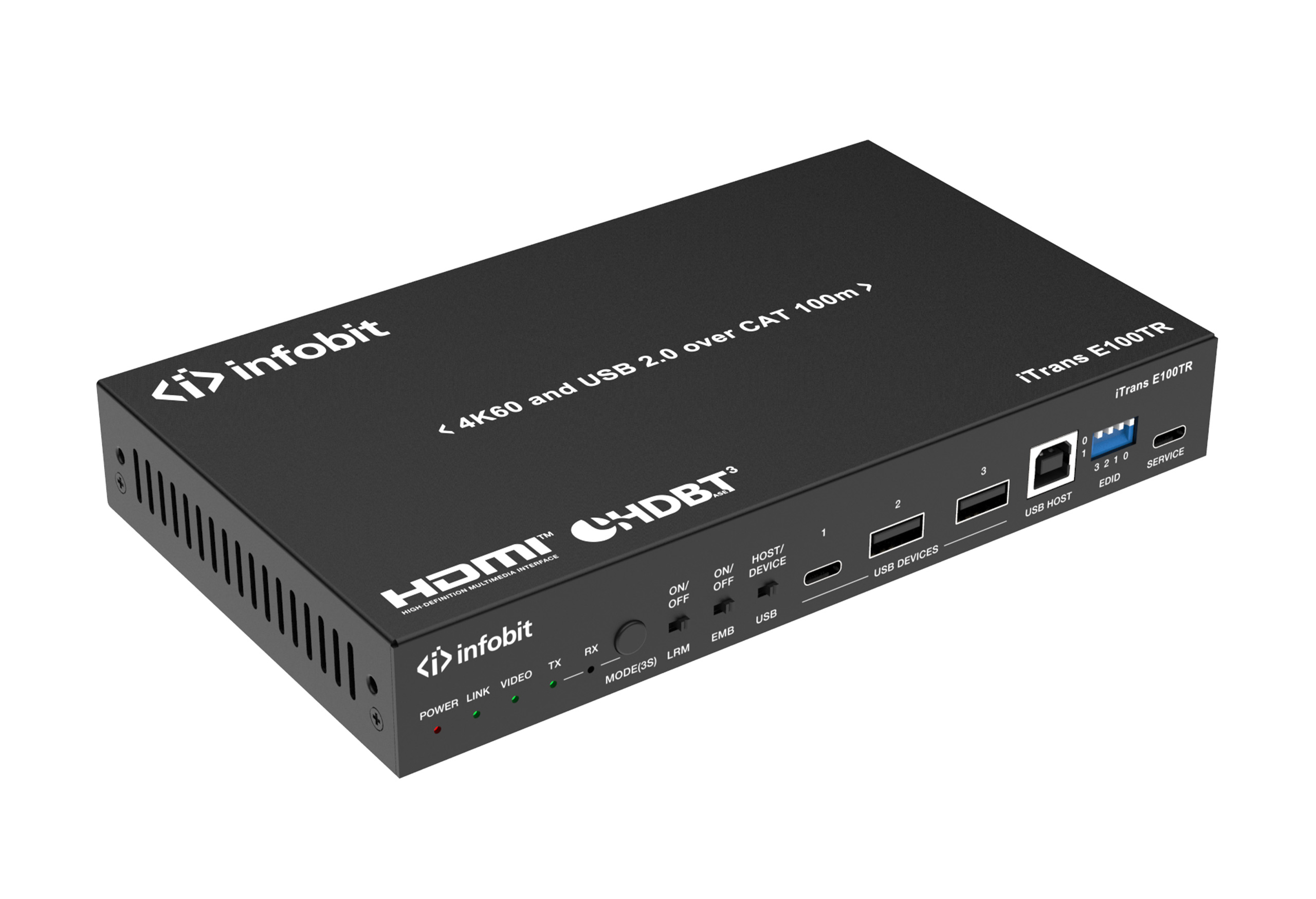

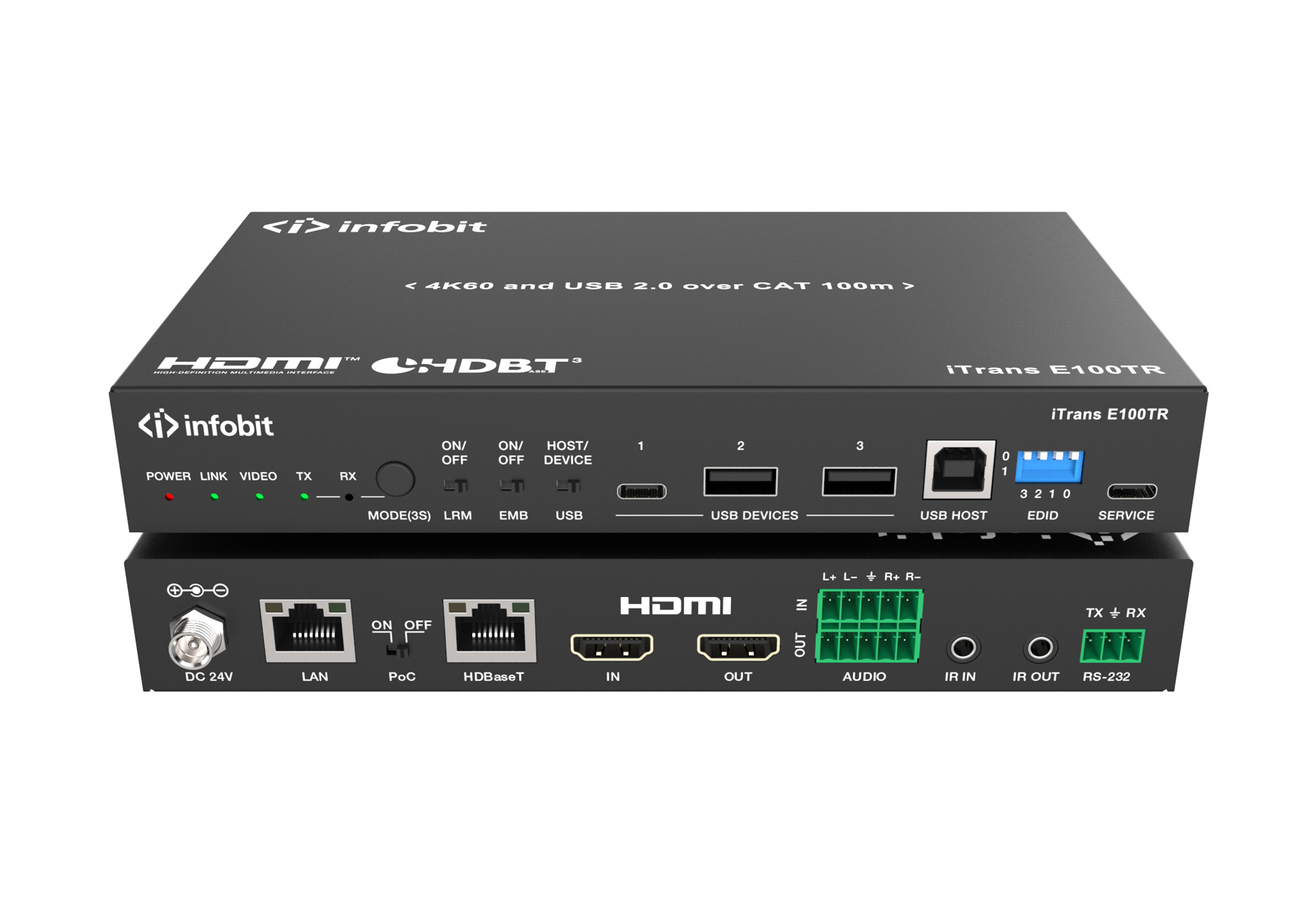

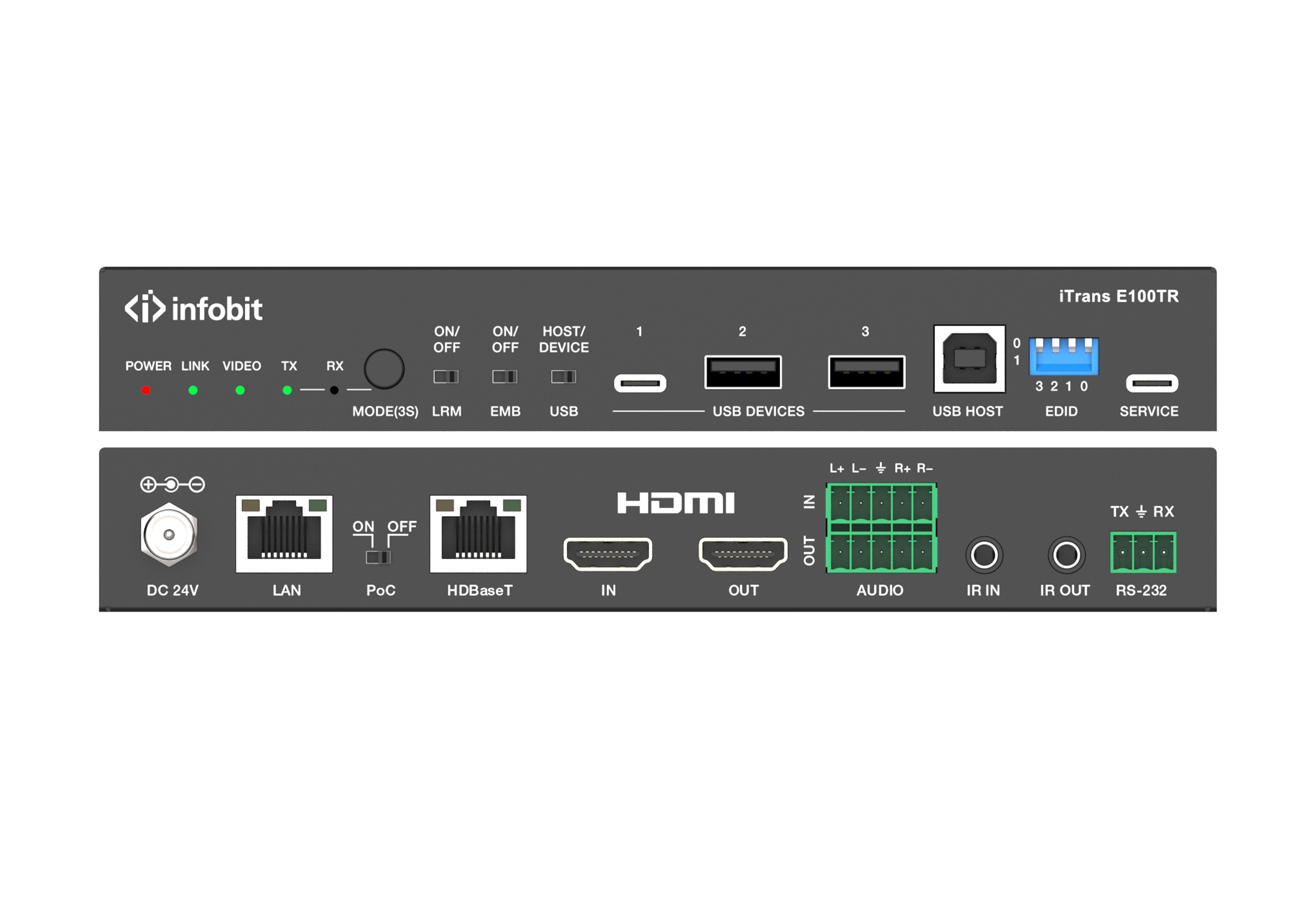

iTrans E100TR
4K60 HDBaseT 3.0 Transceiver with USB 2.0

Integrated transceiver design, can be flexibly configured as TX or RX through front panel buttons or API commands

HDCP 2.3 and HDBaseT 3.0 compliant

Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth, as specified in HDMI 2.0b

4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)

1080P60 4:4:4 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)

HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through

Supports all HDMI audio formats pass-through

Supports analog audio embedding and HDMI audio de-embedding

Bi-directional IR, RS-232, and 1G Ethernet signal pass-through

Supports USB 2.0 transmission, Host/Device is configurable

Supports EDID management and CEC signal pass-through

Bi-directional 24V PoC function, with PoC switch
