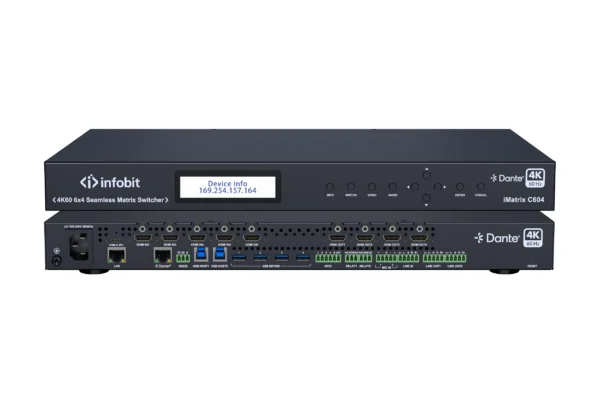

Infobit – iMATRIX C604 – HDMI and USB C 6×4 Seamless Matrix Switcher with Dante and DSP

Description

Inputs and outputs support resolutions up to 4K@60Hz 4:4:4 8-bit.

Supports HDCP 2.3 and is backward compatible.

HDMI outputs support free scaler from 480p to 2160p, and provide seamless transition without seeing black screen switching.

Full-featured USB-C input port, supports 4K@60Hz, USB 3.1 gen1, 1G network, and PD 3.0 charging up to 60 watts.

Supports USB host switching and USB device extension.

Switching USB hosts include 1x USB3.0 type-C port and 2x local USB3.0 type-B ports;

USB devices include 4x local USB 3.0 type-A ports.

Versatile audio connection and DSP.

2x Mic inputs, and 1x LINE input

1x USB audio input and 1x USB audio output, with 48KHz sampling frequency

Dante 4×4 with various sampling rates

HDMI audio de-embedding with sampling frequency up to 192KHz

Supports 2x balanced audio outputs.

Multi-Channel audio DSP Processing—simultaneously processing audio input and output signals, including gain, EQ, etc.

Supports GPIO control and relay control.

Multiple control options, including front panel buttons, RS-232, and LAN (Web UI &Telnet).
