Infobit – 4K60 HDMI Video Wall Controller, 1x HDMI and 1x USB C in, 4x HDMI out.

SKU : INFO - IWALL 104C

Description

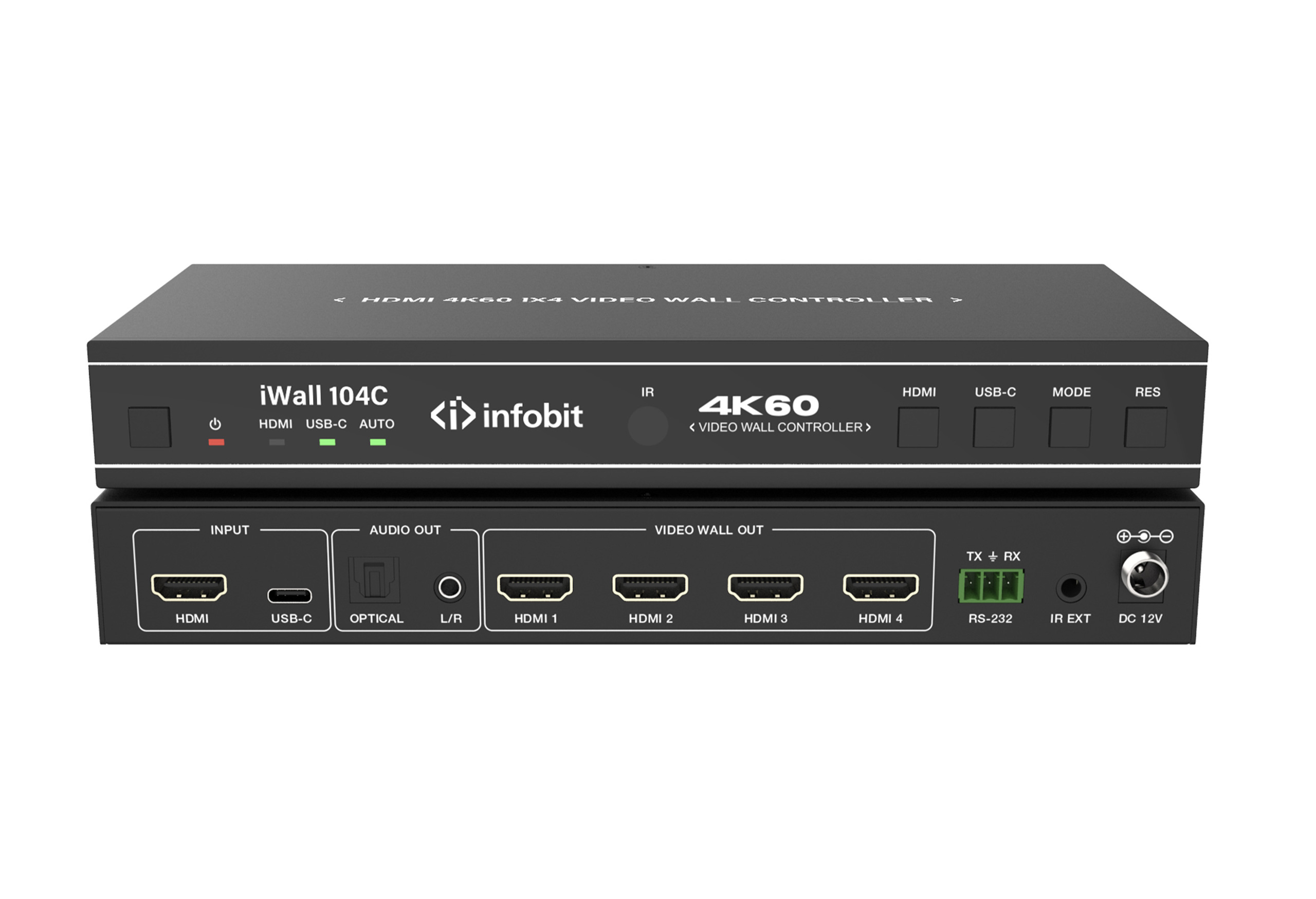

iWall 104C

HDMI 4K60 1×4 Video Wall Controller

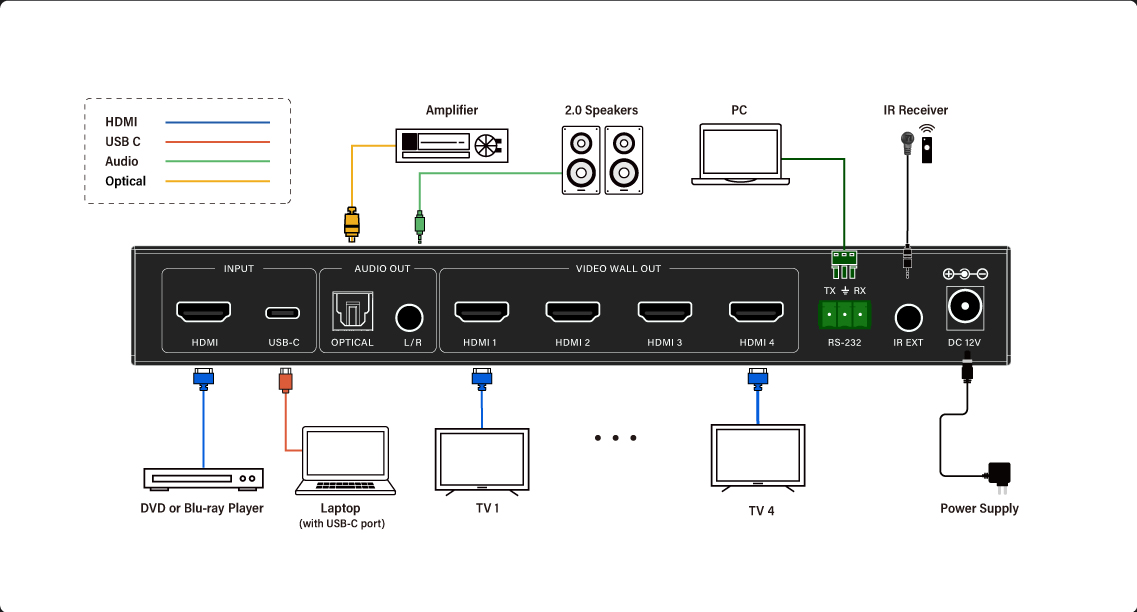

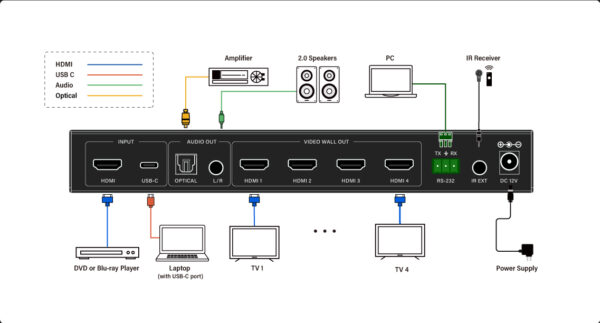

1x HDMI IN, 1x USB C IN, 4x HDMI OUT

HDMI 2.0, HDCP 2.2 and DP1.2a compliant

Support HDMI and USB-C inputs, resolution up to 4K@60Hz 4:4:4, not working simultaneously

Support optical and L/R analog audio de-embedding outputs

Support 8x video wall modes: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2

Support image 180° rotation, convenient for ceiling installation

Support bezel adjustment

Advanced EDID management

Control via front panel buttons, IR remote and RS-232 commands

Plug and play, no driver or software required



Flexible videowall installation

Supports 8x videowall displaying modes from 1×2 to 2×2 videowalls.

Support both HDMI and USB C inputs

Support HDMI and USB-C inputs, resolution up to 4K@60Hz 4:4:4,
the HDMI and USB C input signals can be switched seamlessly,
but not working simultaneously

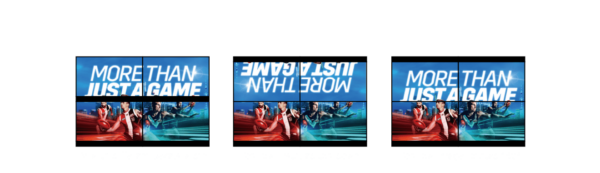

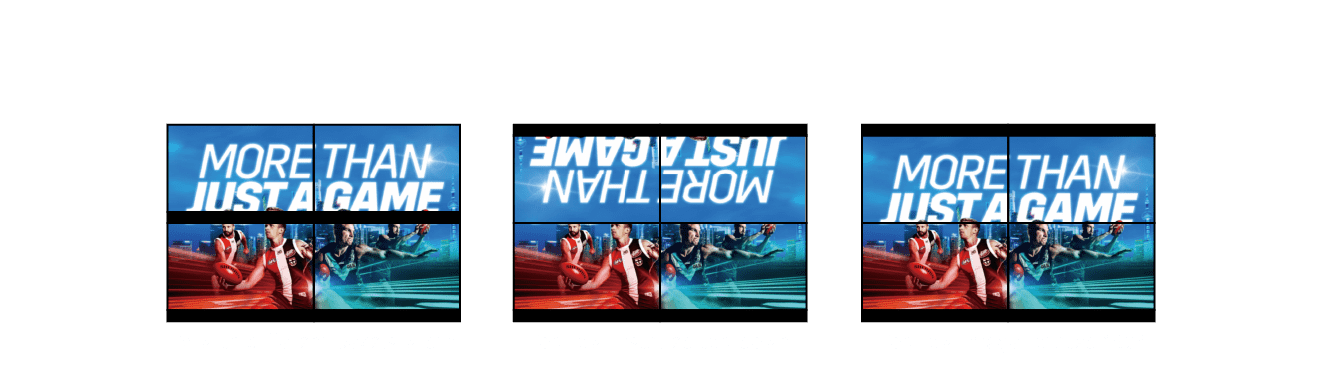

Rotate the first row at 180°

The first row of outputs can be rotated at 180°, iedal for TV wall for sports bar, restaurant or shops.
