Description

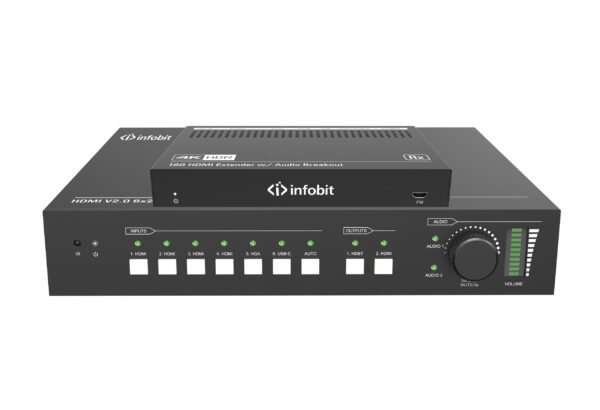

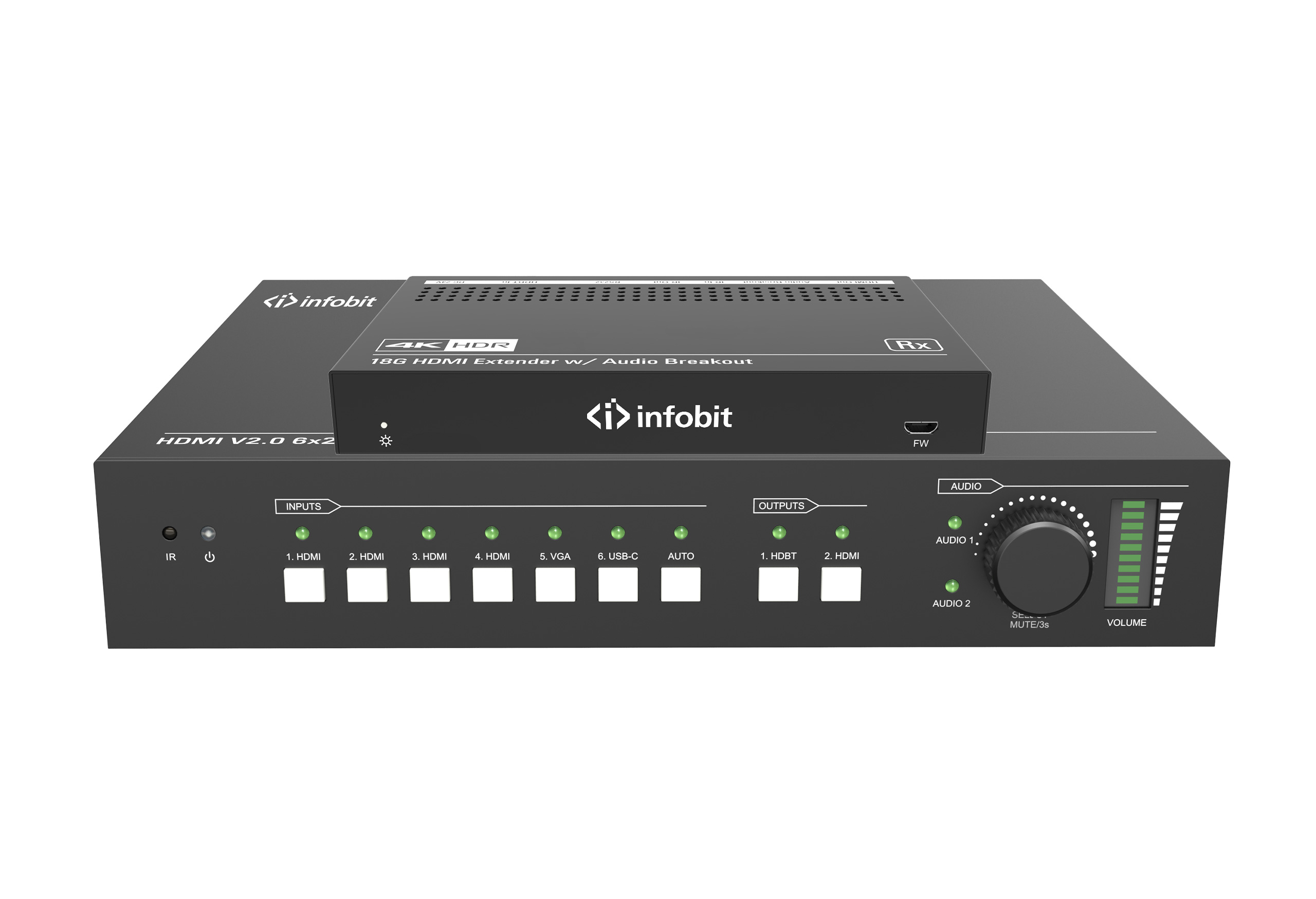

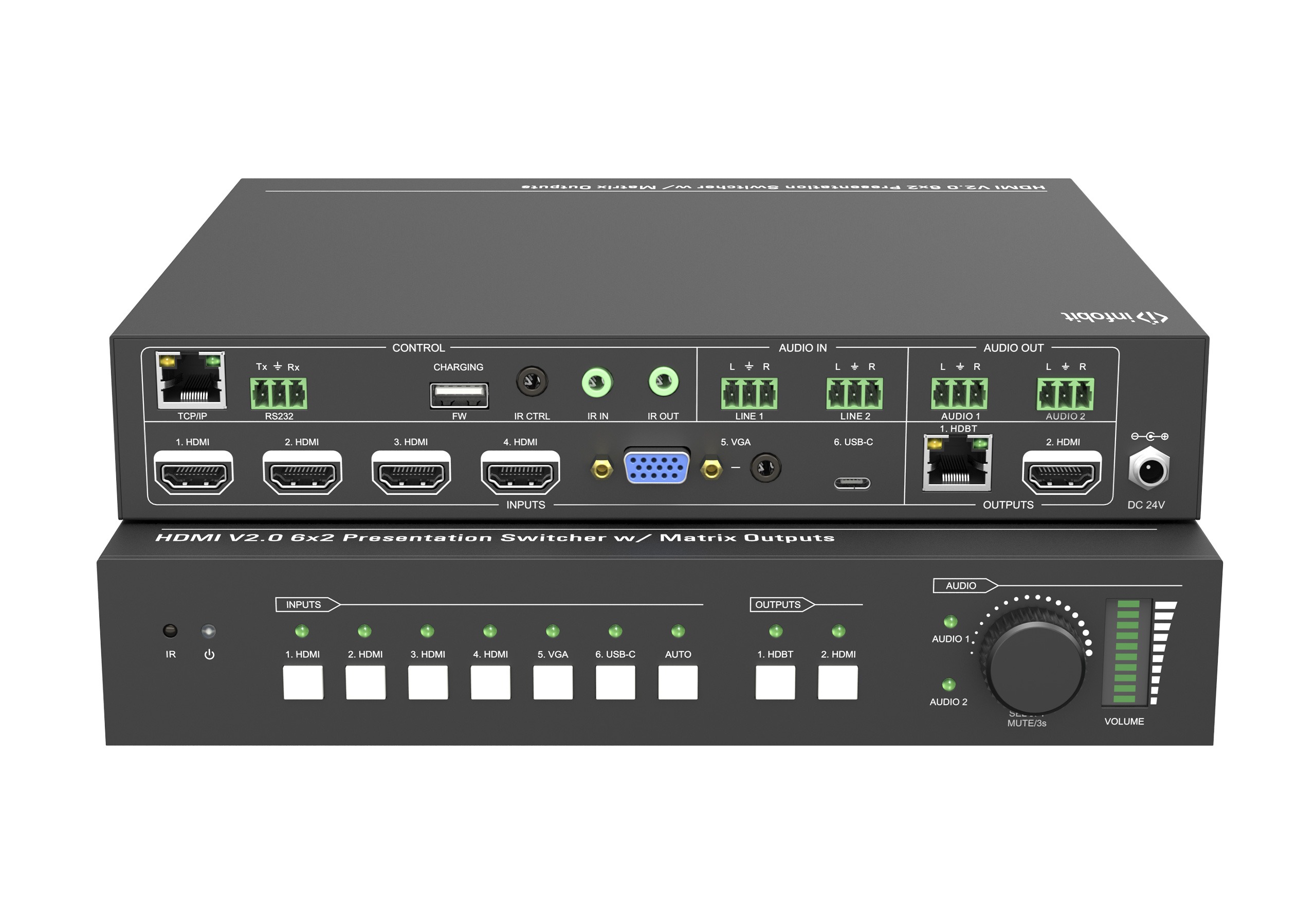

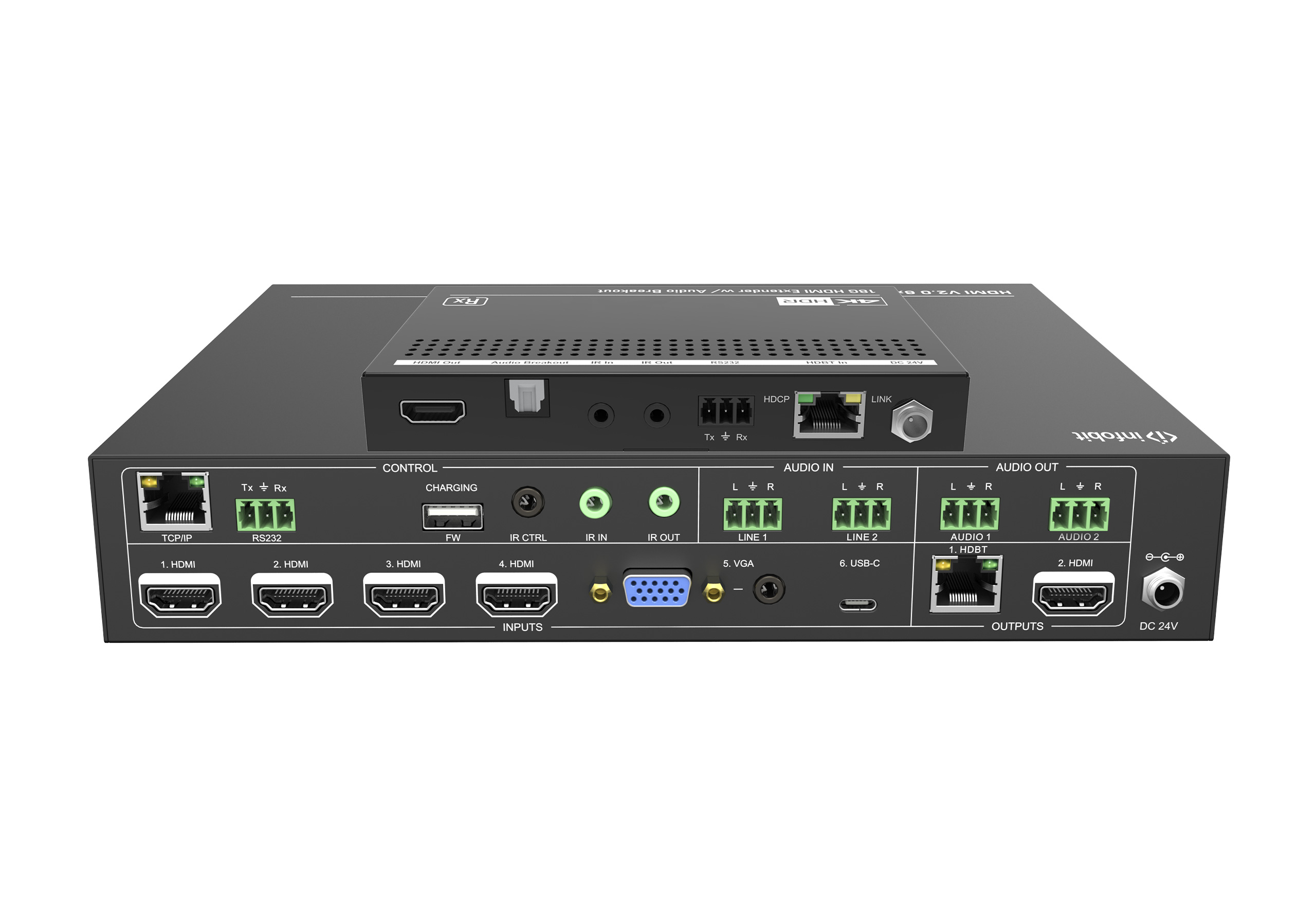

iSwitch 602

4K60 6X2 HDMI 2.0 HDBT Matrix Switcher

6×2 18G HDMI presentation switcher with matrix outputs.

HDMI V2.0 and HDCP 2.2 compliant.

Video resolution up to 4K@60Hz 4:4:4, HDR.

Supports auto switching.

HDMI signals transmission up to 40m at 4K and 70m at 1080p on HDBT output.

The HDBT output supports 24V PoC for the receiver.

USB-C input supports resolution up to 4K@60Hz 4:2:0.

Provides two audio inputs for audio embedding and two audio outputs for audio de-embedding.

Supports audio output volume control.

Supports EDID management.

Supports downscaling on HDBT output and upscaling on HDMI output.

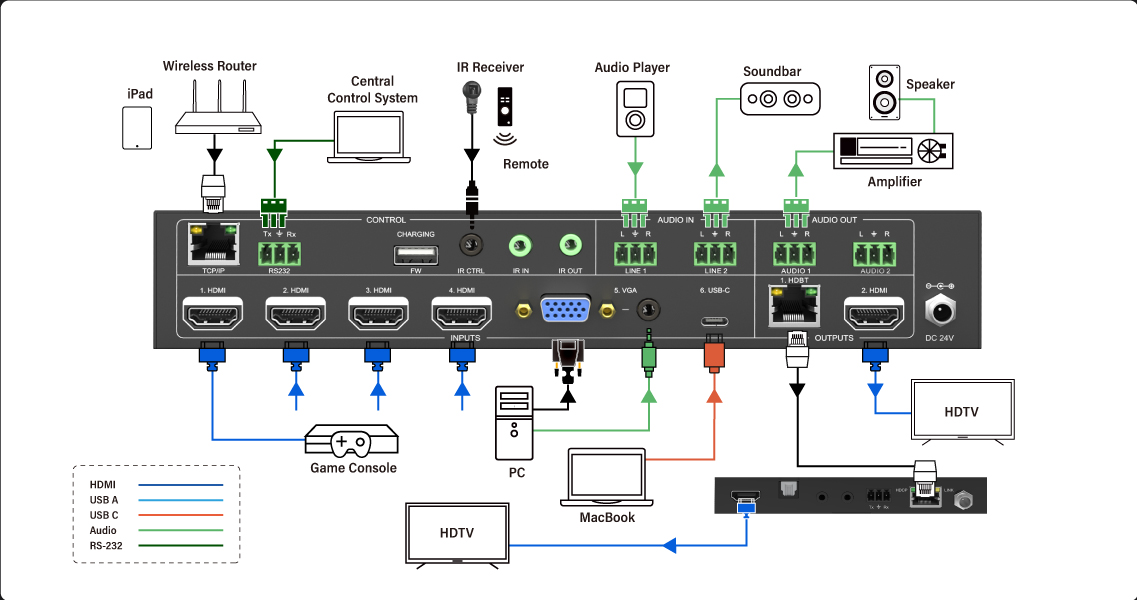

Controllable via RS232 local and pass-through, IR local and pass-through, TCP/IP, CEC, and front panel.

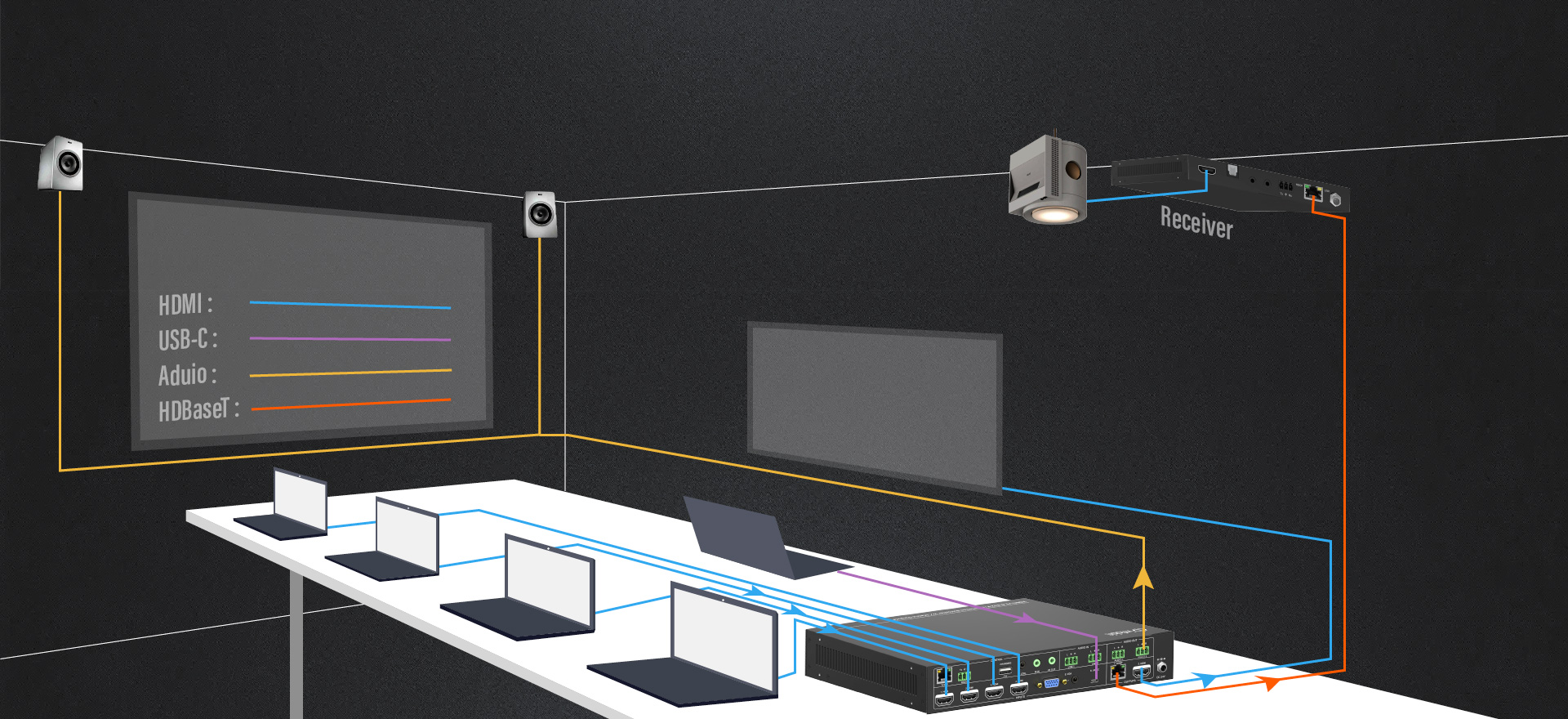

4K60 Presentation Switcher

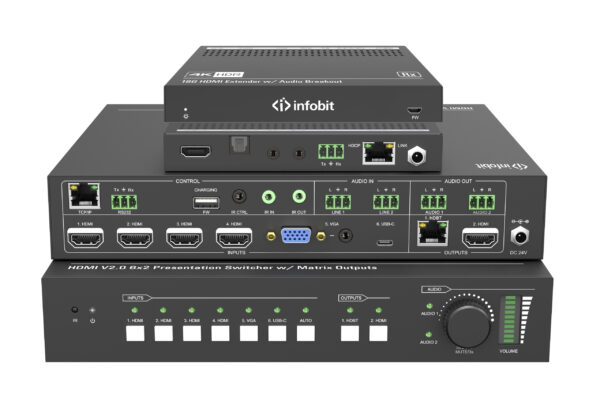

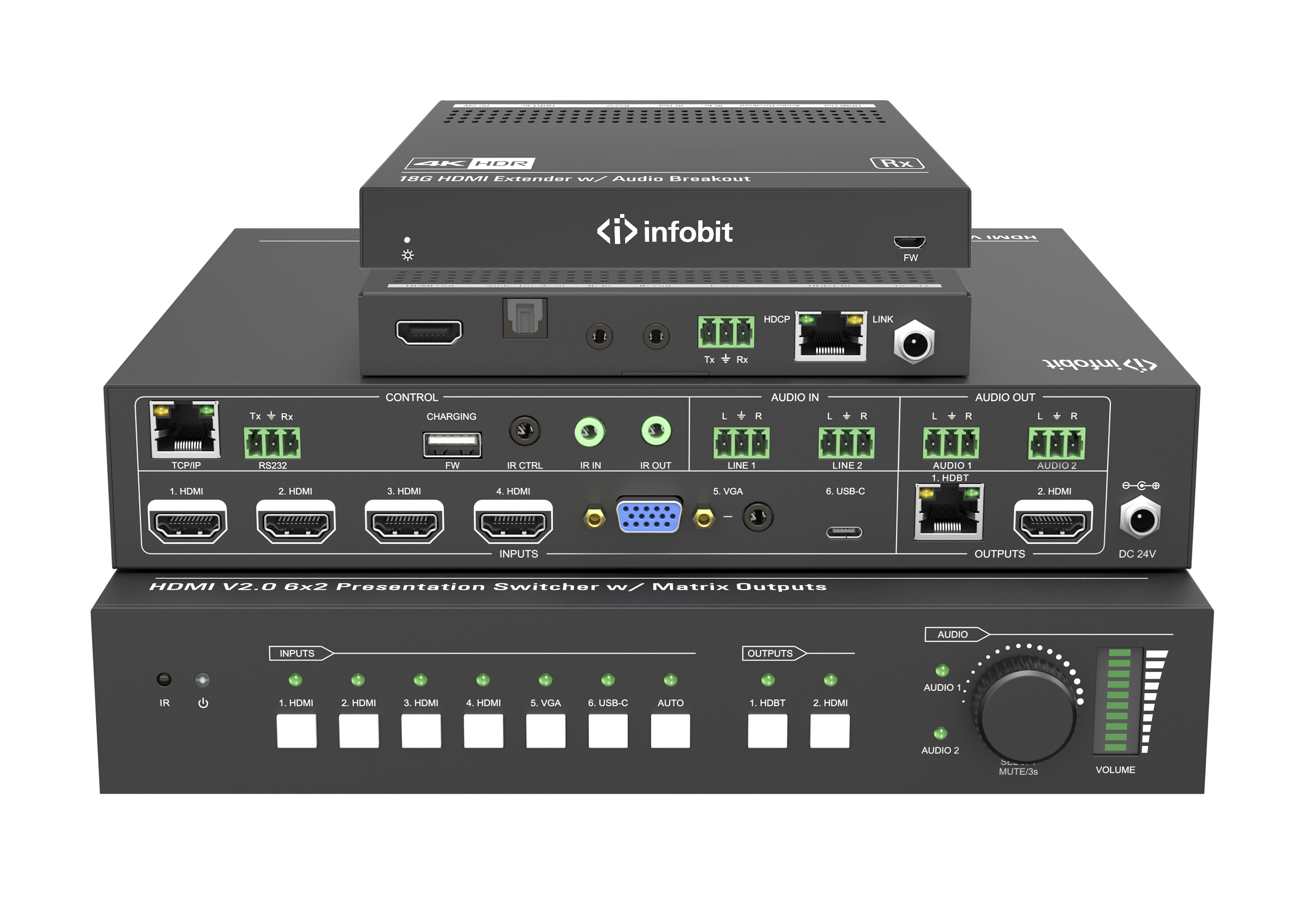

The matrix switcher supports resolution up to 4K@60Hz@4:4:4, HDR. The HDBT technology allows HDMI signals to be transmitted up to 70m over a CATx cable while ensuring very high, original image quality. It is designed for using with the receiver iSwitch 602R.
