GUDE – Temperatur/ Humidity/ Air Pressure Sensor with 2 signal inputs 7210, TAA compliant

Description

Temperature/Humidity/Airpressure/Signal Sensor for GUDE units with RJ45 socket

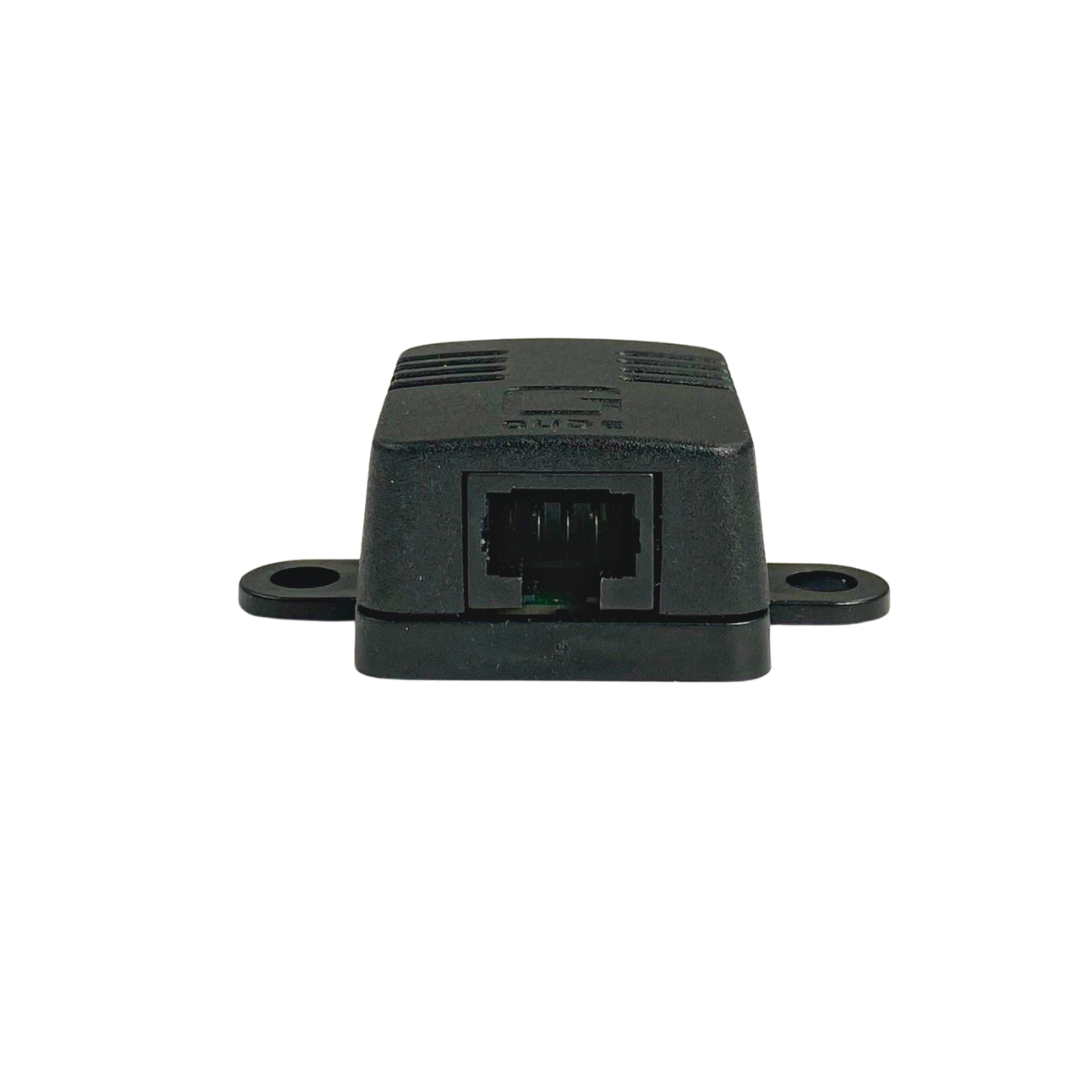

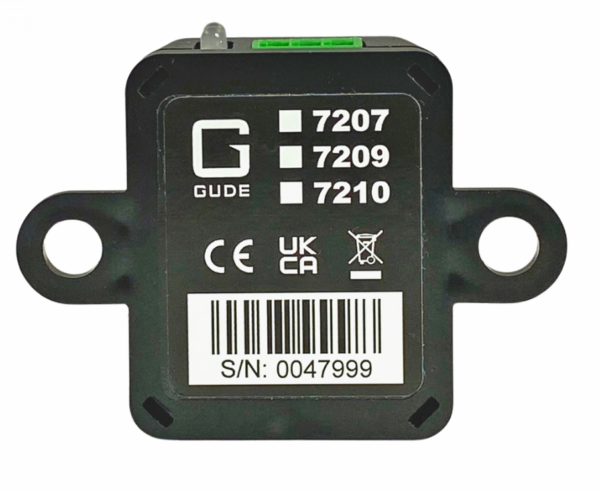

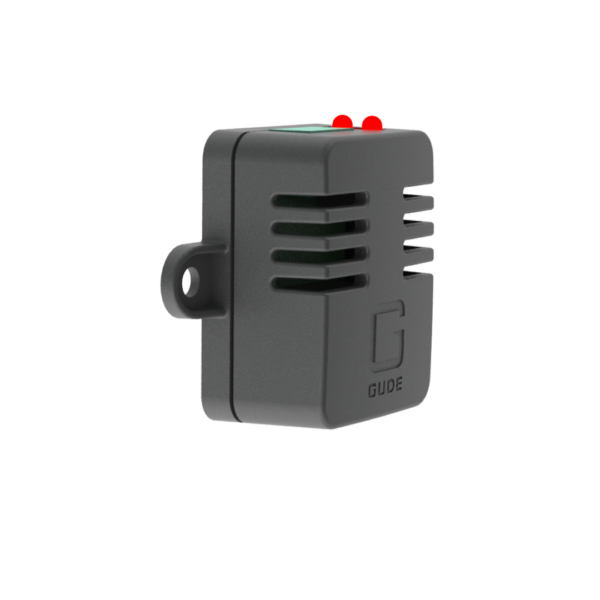

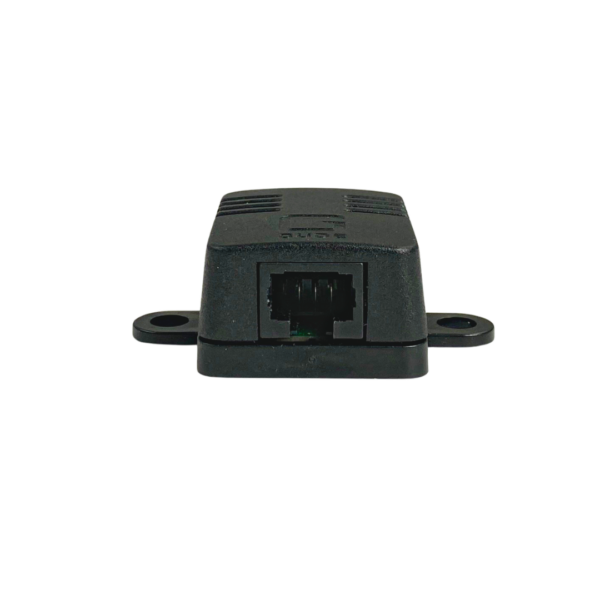

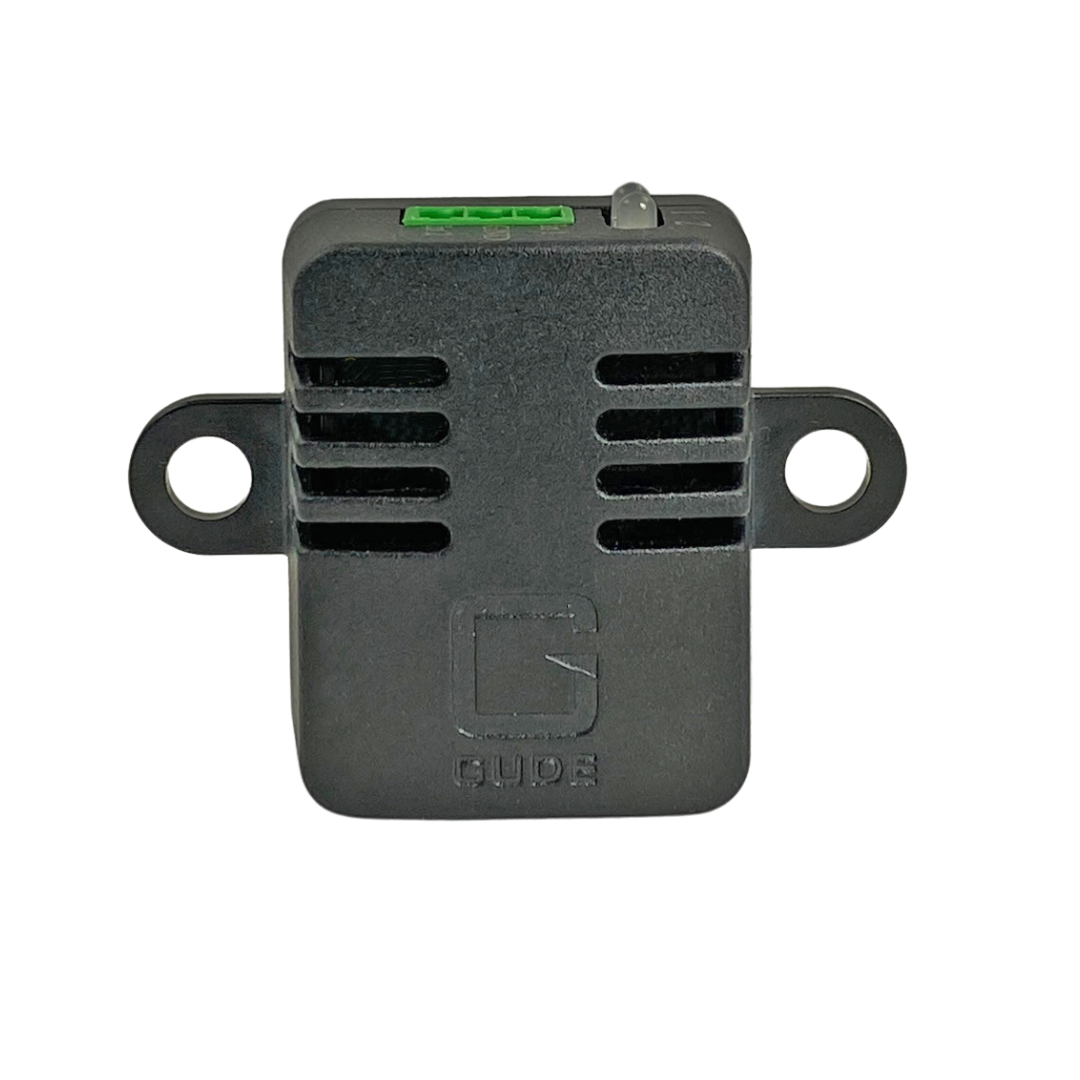

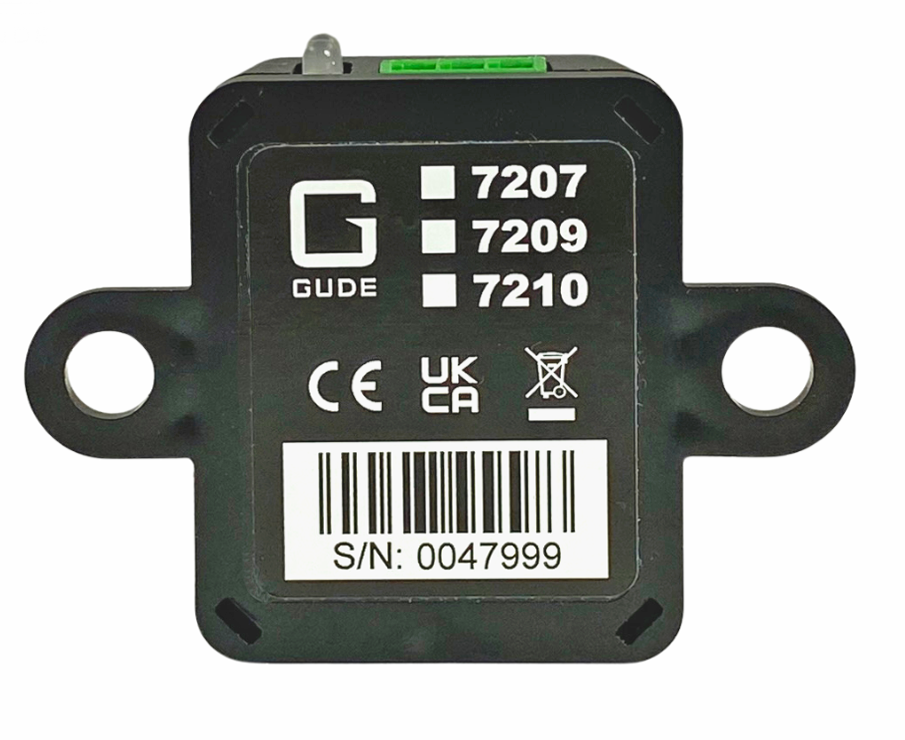

Combined Temp., Humid., Airpressure, Signal Sensor 7210 with RJ45 socket for reliable environment monitoring

Increased operational reliability through proactive temperature, humidity and airpressure monitoring
Supplement monitoring by polling NO/NC devices such as smoke detectors and leakage sensors
Easy installation with plug-and-play
Monitor your installation environment in real time
Fewer failures due to early detection in case of overheating

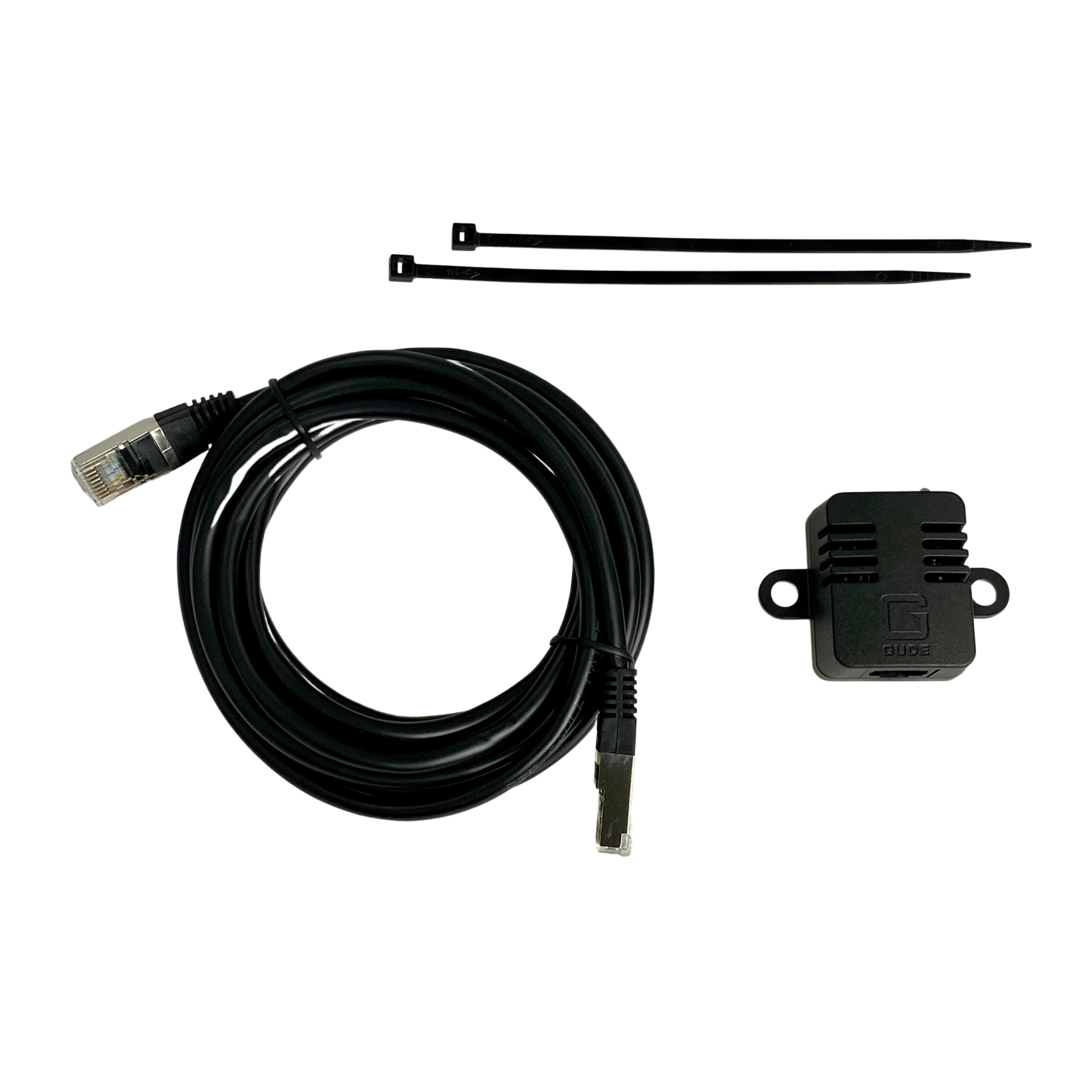

Connection via RJ45 cable
Cable length up to 40 m

The combined Sensor 7210 contains a combined temperature, humidity and air pressure sensor as well as 2 passive signal inputs. All parameters are measured and evaluated simultaneously. The hybrid sensor is fast and easily installed by connecting it with a RJ45 cable to the sensor’s RJ45 socket and the corresponding GUDE device. Thanks to plug-and-play the sensor is automatically identified with no further settings or installations needed. The cable can have a length of up to 40 m.

The temperature sensor allows real-time monitoring of environment temperature, humidity and airpressure. Thanks to a cable length of up to 40 m, they can be placed at an ideal location in the installation. By means of the integrated signal inputs, safety can be further increased by polling connected NO/NC devices such as smoke detectors, leakage or door contact sensors. Overheating in the IT or AV environment that poses a threath to operation can be detected early, even before cost-intensive failures occur. Automatic notifications when configurable sensor thresholds are exceeded or deceeded allow the user to proactively intervene and prevent serious damage.
