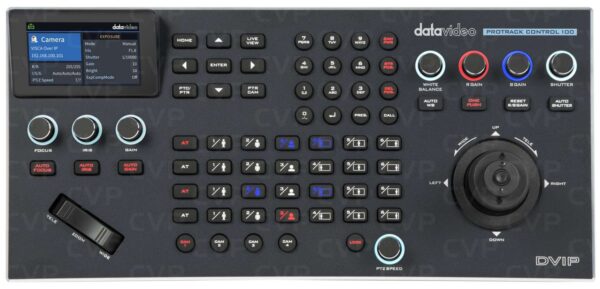

Datavideo – PTZ camera controller. Control up to 4 PTZ cameras via serial.

Description

Maximum Camera Control: 4

Preset (Position): 255

Control Protocol:
VISCA
VISCA over IP
Pelco-D?Pelco-P
DVIP
ONVIF
NDI

Connection to Cameras:
4 x RS-422/ RS-232
1 x Ethernet (DVIP)

Input/Output:
1 x Tally Input
1 x HDMI Output, up to 4K30Hz

Build-in Control Panel Size: 3 inches, Resolution: 640 x 360

Firmware Upgrade Via WebUI
OSD+USB

Dimension 354x165x120mm

Operating Temp. Range 0° C ~ 40° C (32° F ~ 104° F)

Storage Temperature – 10° C ~ 60° C (14° F ~ 140° F)

Operating Humidity 10% to 80% (non-condensing)

Power DC-12V, 18W
