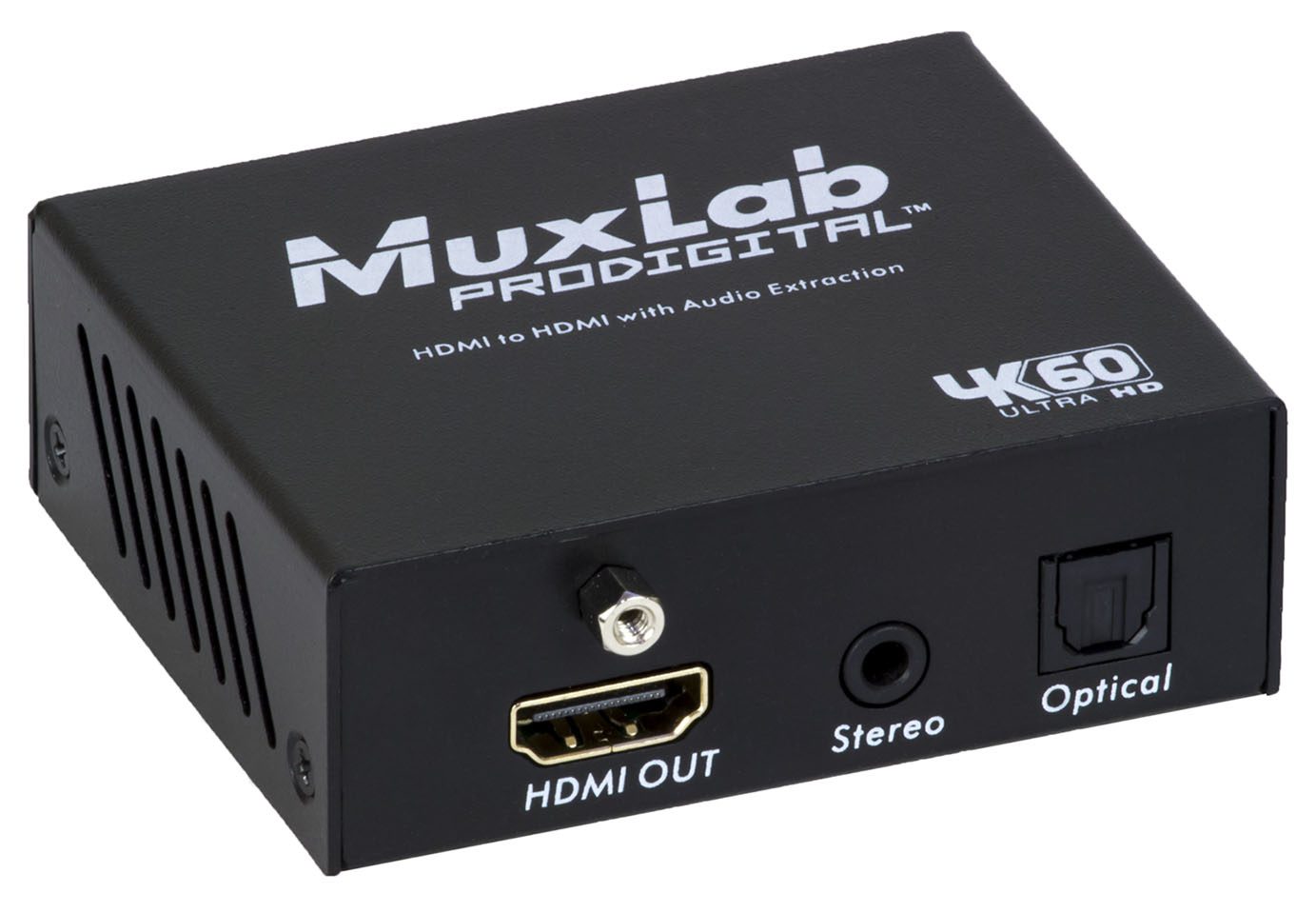

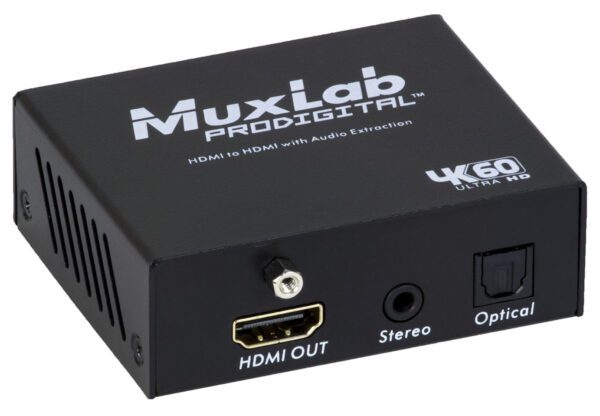

MUXLAB – HDMI TO HDMI WITH AUDIO EXTRACTION, 4K/60

Description

The HDMI to HDMI with Audio Extraction, 4K/60 allows one (1) HDMI source to be distributed to one (1) HDMI display. The device supports up to 4K (3840 x 2160) video resolution at 60Hz, 8-bit color and HD audio.
The unit extracts LPCM, Dolby Digital, DTS, Dolby Digital Plus* and Atmos** digital audio from the S/PDIF TosLink port and 2CH analog audio from the 3.5mm 2CH audio port. The product is HDCP 2.2 compliant and features LED diagnostics.

Applications:

Commercial and residential AV systems
Classroom projector systems
Digitial signage
Boardroom systems
Collaborative PC systems

FEATURES
Allows one HDMI 2.0 source to be repeated and distributed to one HDMI display
HDMI supports 4K video at 60Hz, 8-bit color depth
HDMI supports LPCM 7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD-Master Audio, and DTS:X
Extracts LPCM, Dolby Digital, Dolby Digital Plus*, DTS, and Dolby Atmos** digital audio via S/PDIF TosLink
Extracts 2CH analog audio via 3.5mm jack * For compressed Dolby Digital Plus signals only (in TV mode) ** For Atmos over compressed Dolby Digital Plus only (in TV mode)
