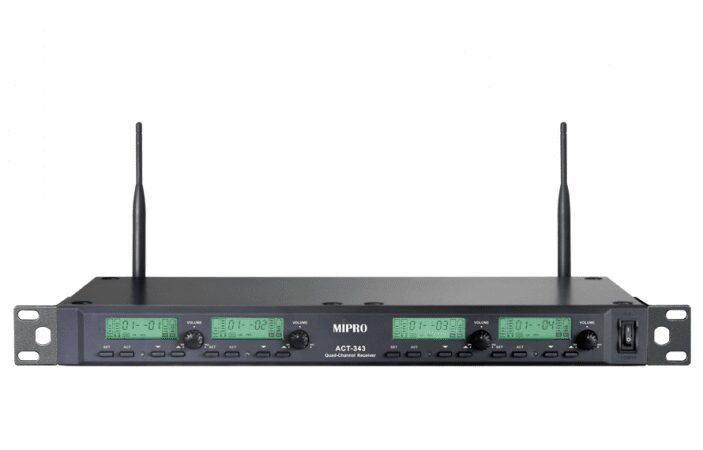

Full rack Quad-channel Diversity Receiver (metal case). Frequency 5ND

Code de produit : MIPRO - ACT-343 - 5ND


EIA standard 1U metal receiver.
Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
Balanced XLR / unbalanced 1/4  » audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for quad-channel receivers.
High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
Industry’s only RF interference warning indicator for ideal SQ level adjustment.
DC input socket accepts 12~15V power supply.
Matching ACT-32H handheld and ACT-32T bodypack transmitters (sod seperately).


Channel: Quad
Chassis : EIA-Standard 19″ 1U
Receiving Mode: Diversity
Frequency Range: UHF 480~934MHz
Antenna : Rear Panel. Detachable.
Preset Channels: 112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled.
961 user-defined frequencies in group 11.
Oscillation Mode: PLL Synthesized, Frequency Stability?±0.005% (-10~+60?)
Sensitivity: 10dBµV, at S/N>80dB
S/N Ratio: >106dB(A)
T.H.D. : <0.5% @ 1kHz
Frequency Response: 50Hz~18kHz, with high pass filter.
Squelch: "PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment: Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level: 2-level Switch: Line & Mic
Power Supply: External AC Adapter, 12~15V DC, 1A
Dimensions: 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"
Weight: Approx. 0.95kg / 2.1lbs
Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
