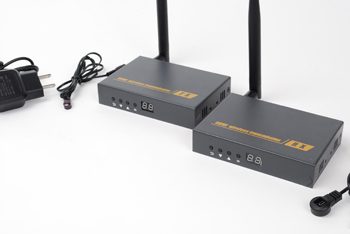

HDMI Wireless system. transmitter/receiver, with IR function

Description

This Wireless HD Video Solution enables wireless transmission of video/audio
from any HDMI video source, such as PC/HDTV to display devices that includes
HDTV/HD Monitor over the 2.4GHz/5.8GHz band, with very low latency. It does not require any special configuration or software driver installation.
Simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. It’s Plug & Play operation
makes it the ultimate solution for the most demanding indoor/outdoor professional
environments. The functionality and ease of use of this Wireless HD Video Transmission Solution
makes it ideal for both residential and commercial installations.

• Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
• Support resolution: [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60Hz
• Support IR remote control function to control source device content from long distance
• Transmitter has one local loop out
• Low latency <200ms
• Effective Range: 200m/656ft in 2.4G, 120m in 5.8G on empty area, the user can select
2.4G or 5.8G and can also pass through 1 wall between the two rooms
• No cable between sender (TX) and receiver (RX)
• Easy and clean installation
• Plug & Play – full hardware design, no software is required

Note:
Transmission distance will be different due to the environment
Wall, brick or glass will shorten the signal cover range or cause big signal loss

Parameter Description

Video
Standard Protocol HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60Hz
Connector HDMI-A
Impedance 100 OHM
Compress Formats H.264

IR
Interface 3.5 mm earphone seat
Signal direction Unidirectional
IR frequency 38kHz

WIFI
Frequency 2.4GHz/5.8GHz
Transmission distance Max :200m/656ft
Wireless Standard 802.11AC

Other
Power supply
The power adapter: DC 5V/2A
Power dissipation MAX 6W
Temperature Operating: -5°C ~ +70°C
Humidity Operating: 5% ~ 90%
Dimension 120 x 82 x 25mm
Warranty 1 year warranty

Additional information

Brand	amx
Quantity per package	1 (unit)
Included Accessories	1x AC adaptor, IR TX/RX Cable
Type connector - Output
Inputs (Qty)
Warranty (Years)	1
Supported Resolutions	[email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60Hz
Outputs (QTY)	1
Type connector - Input	HDMI
Version HDCP	1.2
Version HDMI	1.3
