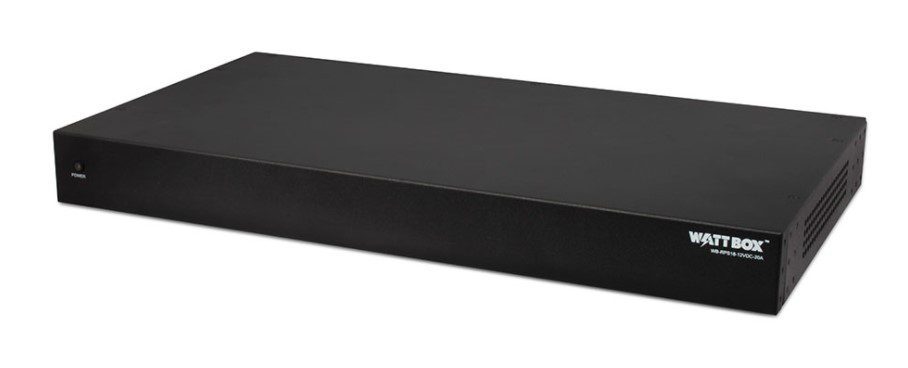

WattBox® 18 Output Rack Mount Power Supply – 12VDC – 20A – PTC Fuses

Code de produit : SA WB-RPS18-12VDC-20A


WattBox® 18 Output Rack Mount Power Supply – 12VDC – 20A – PTC Fuses
Standard wall wart style camera power supplies are fine for small jobs, but when it comes to larger surveillance installations with multiple cameras, a rack mounted power supply is a cleaner, more efficient, and more flexible way to manage all that wiring. This 18-output 12VDC model is the perfect complement to our 16 channel DVRs/NVRs and delivers up to 18A total current. Plus included screw-terminal connectors make for easier installation and quick trouble-shooting, and self-resetting PTC fuses help protect your power supply and prevent service calls.

Neat, Clean Install
We get it – finding a place for all those wall warts is a pain in the neck, especially when you want to put your power near the DVR/NVR in a rack. That’s why we’ve given you all the power you need, plus included mounting ears to provide versatility. Whether it’s front of rack, back of rack, ceiling or wall-mount, this box goes where you need it.

12VDC @20A Total Power
Each output is rated up to 1A with a total power supply current draw of 20A. That’s enough juice to power more than 18 cameras and accessories.

Self-Resetting Fuses
If a traditional glass fuse blows, odds are you’re rolling a truck to replace it. Fortunately for you, each output features a positive temperature coefficient (PTC) fuse that never blows and never needs to be replaced. If too much current is drawn, the fuse will heat up and automatically open the circuit. Once the problem is resolved, the fuse will cool and reset the connection. Simple, yet very effective.

Easy Connection
Goodbye, wall warts – hello, beautiful! This WattBox’s provided screw-terminal connectors make connecting your cameras quick and painless. Need to troubleshoot? Simply unplug. Doesn’t get much easier than that.

LED Power Status
An LED indicator on each output confirms if power is being applied. If a fuse is open or there is a fault condition, the LED will turn off.

Unit Dimensions (H x W x D) 1.75″H x 19″W x 9.5″D
Product Weight 6.6 lbs.
Input 120VAC/60Hz
Output 12V DC 20A
Channels 18
Total Power 240W
Max Channel Power 12VDC / 1A
Fuse Type PTC
Main Fuse Type T8L
Mounting Method Rack Mount, Shelf Mount, Wall Mount
Cooling Fan Yes
Certifications CE, FCC
Product Warranty Period 5 Year warranty
