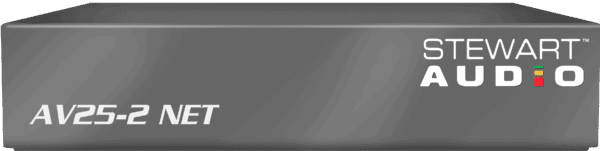

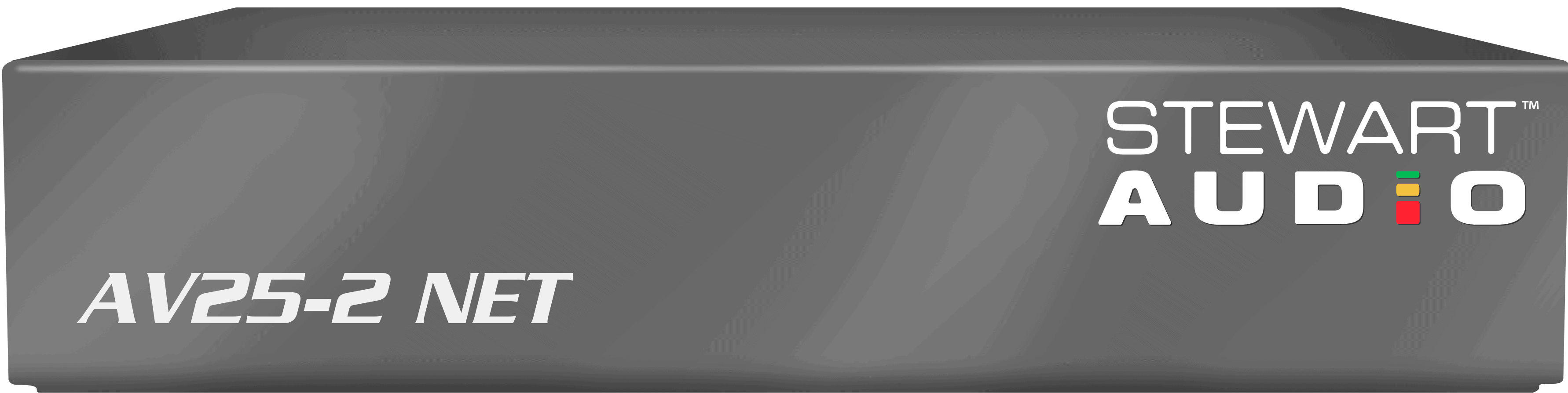

Stewart Audio – Compact Dante/AES67 Amplifier – 25w @8 ohm / [email protected] ohm X 2 – Dante/AES67 input Remote Volume Control Added

Description

Features

Onboard DSP for signal routing, filtering, ducking, compressor, limiter, etc.
Ethernet configuration, control & reporting
1/2 Rack package
4 Analog inputs (4 line/mic; 2 w/ phantom power)
4×4 Break in/Break out Dante™ channels

Specifications

Output Power: 320W x 1 @ 70.7V/100V
Frequency Response (+0, -3dB): 100 Hz-20 kHz (70.7/100V)
THD+N: 95dB
Input Sensitivity: 1V (0 dBV)
Input Impedance (Balanced/Unbalanced/Phantom): 7.2k Ohms/3.6k Ohms/2.4k Ohms
Power Consumption – Idle, 1/8 Power: 12W, 60W
Amplifier Class: D
Dante Audio Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192ksps
Remote Volume: 0 – 10V
Input Connectors: 3.5mm Euroblock; 24V Phantom Power on 2 channels
Dante/AES67 Network Audio (optional) and Control Port: RJ-45
Output Connectors: 5mm Euroblock
LED Indicators: Power
Controls: Ethernet, RS-232 & RVC
Power Supply Input: 100 – 240 VAC 50/60Hz (PFC Universal Input)
Construction: Aluminum Chassis
Mounting: Rack-mountable, single & dual
Cooling: Convection-Cooling (No Fans)
Dimensions (HxWxD): 1.7″ x 8.3″ x 10.7″ (44mm x 213mm x 272mm)
Weight: 4.9lbs (2.2kg)
