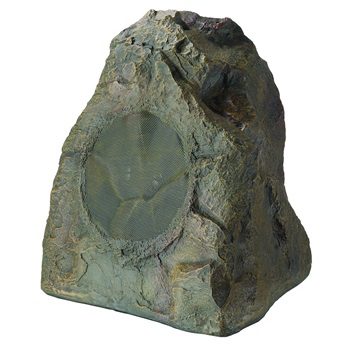

Rock Monitor 60-SM Northeastern Granite -UN

Description

Rock Monitor 60-SM Specifications

Design
Single speaker system with stereo L/R inputs, 3-driver, 2 x 2-way coaxially mounted high-frequency drivers, weather, water, UV-resistant sealed enclosure, self draining fissures
Crossover
Two 2nd-order electro-acoustic at 3.0 kHz
Frequency Response On-Axis
±2 dB from 66 Hz – 20 kHz
Frequency Response 30° Off-Axis
±2 dB from 66 Hz – 18 kHz
High Frequency Driver
Two 25-mm (1 in) PTD™ domes
Low Frequency Driver
Dual voice-coil, 165-mm (6-1/2 in) ICP™ cone, die-cast chassis
Low Frequency Extension
44 Hz (DIN)
Sensitivity Room / Anechoic
89 dB (groundplane measurement) /
Impedance
Compatible with 4 ohms Mono; 8 ohms / channel Stereo Input
Suitable Amplifier Power Range
15 – 100 watts Mono; 15 – 55 watts / channel Stereo Input
Maximum Input Power
70 watts Mono; 35 watts / channel Stereo Input
Finishes
Northeastern Dark Granite, Fieldstone
Weight
12.1 lbs. (5.5 kg)
Dimensions HxWxD
12.25″ × 11.125″ × 10.625″
(31.0cm × 28.2cm × 27.0cm)
Specifications are subject to change without notice.
