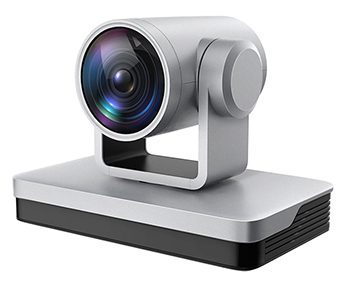

4K PTZ Ultra HD Video Conference Camera, 60fps, 12X Zoom Lens. USB 3.0, HDMI and LAN

Code de produit : MINRRAY - UV430A


UV430 Ultra HD 4K camera is featured with advanced ISP processing technology and algorithm to provide high quality image and smooth motion.
It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.

Key Features:

4K Ultra HD
1/2.5 inch high quality 4K CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840×2160) @60fps and compatible with 1080P, 720P and other resolutions.

Optical Zoom Lens
12X optical zoom lens, 81¢X FOV without distortion.

Leading Auto Focus Technology
Advanced and leading algorithm enables the camera auto focus fast and accurately.

Low Noise and High SNR
Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.

Multiple Video Outputs:
HDMI, USB3.0 and LAN support audio video output.

Multiple USB Compression Encoding Format:
YUY2,MJPEG,H.264,NV12 video encoding formats

Multiple Audio Compression Standard
Audio-in supports AAC, MP3 and G.711A audio compression; 8000,16000,32000,44100,48000 sampling frequency

Multiple network protocol
Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza,FMS); RTP multicast mode; VISCA control protocol

Control Interface
RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection

Multiple Control Protocol
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.

Multiple preset
Up to 255 presets (10 presets for remote control).

Multiple Applications
Online-education, Lecture Capture, Broadcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.


Spécifications techniques



Accessoires optionnels


Garantie (années)

USB 2.0 Power

USB 3.0 Ext 30 M

USB 3.0 Power

Visca / Pelco-D & P

Zoom numérique
